Placement

Yamaha manufacture a full range of placement equipment from low volume high mix to high volume high mix. Including PTH insertion machines to automate your production.

Mobirise

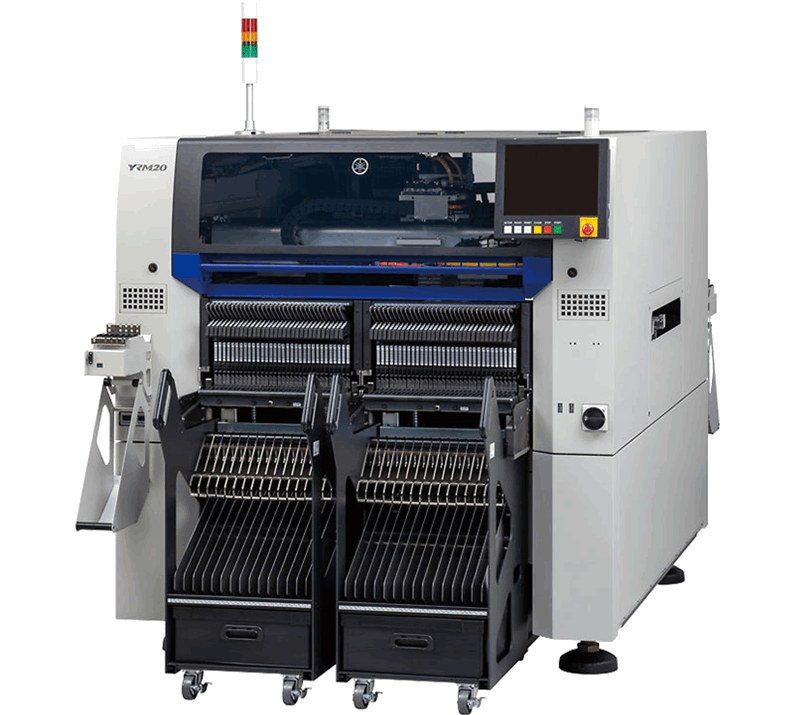

YRM20

• Up to 115,000 cph
• 0201m to 55 x 100mm component range
• Up to 30mm component height
• 128 feeder capacity using feeder carts
• L810 x W510mm board size
• Two beams, two head types
• Overdrive motion giving high efficiency
• Handles tape, stick, tray etc.
• Scalable for future production requirements

Mobirise

YSM20

• Up to 90,000 cph; 2 Beam 2 Head layout
• 03015 to 45 x 100mm component range
• Up to 15mm component height
• Includes BGA recognition
• L810 x W490mm board size
• Handles tape, stick & tray with feeder carts.
• Built-in tape cutter

Mobirise

SIGMA G5S-2

• Up to 90,000 cph
• 2 Beam 2 Head layout; High Efficiency
• 0201m to 44 x 44mm
• Up to 35mm component height
• L610 x W510mm board size, up to 1.2m long board available; Dual Lane option
• Handles tape, stick, tray etc.
• Through-hole insertion and clinch capability.

Mobirise

i-Pulse S10

• Up to 45,000 cph
• 02015m - 120 x 00mm component range
• Up to 30mm component height
• Unique 3D MID assembly module
• L955 x W510mm board size
• Up to 1330mm long board available
• Handles tape, stick, tray etc.
• Glue and Solder Paste dispensing available

Mobirise


YSM-10

• Up to 46,000 cph
• 03015m to 55 x 100mm component range
• Up to 15mm component height
• Includes BGA recognition
• L510 x W460mm board size
• Up to 610mm long board available
• Handles tape, stick, tray etc.
• Scalable for future production requirements

Mobirise

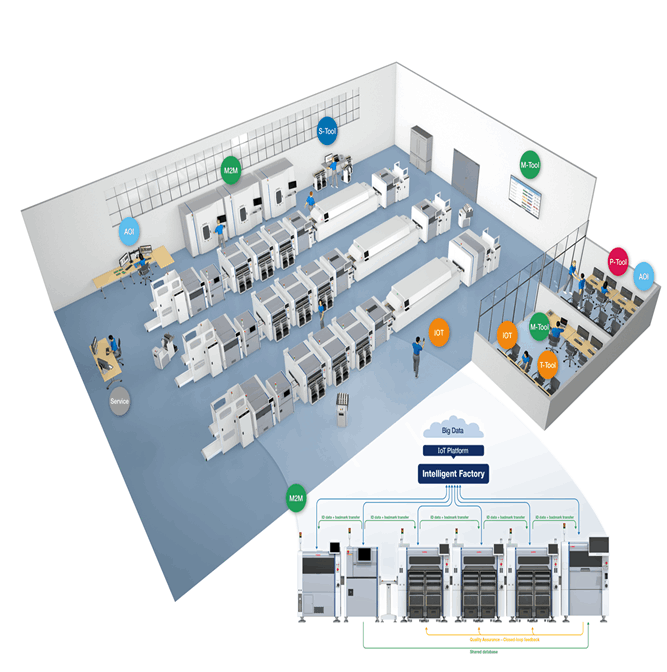

Software

• Full factory solutions
• Totally scalable to suit your needs
• Program machines from Gerber/CAD
• All machines SPI/P&P/AOI in one platform
• Production scheduling
• Setup optimise for minimum changeover
• Material control from warehouse to line
• Automatic material delivery to lines
