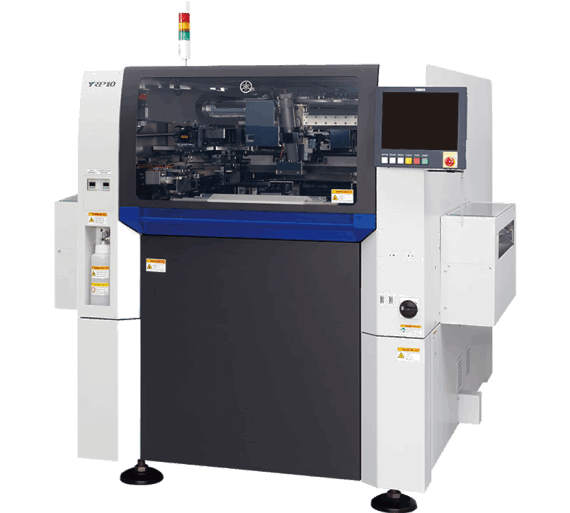

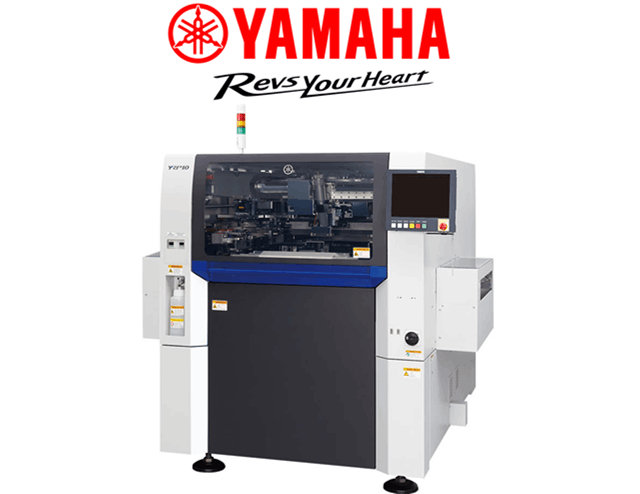

YAMAHA YSP10
The YSP10 is Yamaha’s premium stencil printer with ultra-high-speed cycle times and the highest accuracy and with the capability of fully automatic changeover tasks. The unique PSC (Print Stability Control) system is one of the multiple functions that are all inside this YSP10 stencil printer.

• 3S Head - One squeegee in the machine. Automatically adjust squeegee angle on the fly.
• Stencil vacuum clamping system ensures stability during printing. Improves printing stability.
• Automatic changeover of stencil, support pins and move solder paste from one stencil to next.
• Fast Cycletime by revision of motion sequence, reduced the cycletime by up to 20%.
• Solder paste inspection option
• Full traceability options available including setup confirmation

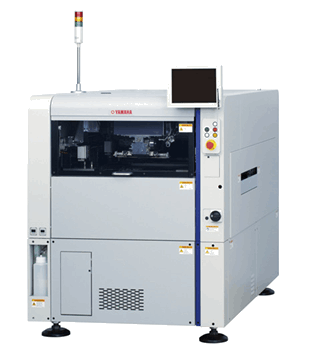

YAMAHA YCP10
The YCP10 is a high-performance compact printer. The Yamaha YCP10 includes built-in high-end features as standard to deliver the highest printing accuracy and quality.

• 3S Head - One squeegee in the machine. Automatically adjust squeegee angle on the fly.
• Stencil vacuum clamping system ensures stability during printing. Improves printing stability.
• 510mm x 460mm board size, stencil adapters for various size stencil frames
• Solder paste inspection option
• Full touch screen operation
• Support for Yamaha SMT production line network, delivers highly efficient production

YAMAHA YSP20 DUAL LANE
The Yamaha YSP20 Dual Lane printer is a high-speed and high-precision stencil printer for all different board sizes. The unique PSC (Print Stability Control) system is one of the multiple functions that are all inside this YSP20 compact unit.

• 3S Head - One squeegee in the machine. Adjust squeegee angle on the fly.
• Stencil vacuum clamping system ensures stability during printing. Improves printing stability.
• Super high-speed printing process in 5 sec/cycle
• Positioning repeatability 3σ: +/- 0.005 mm
• Large stencils front & rear max. 750 x 750 mm (29" x 29")

For more information please contact us

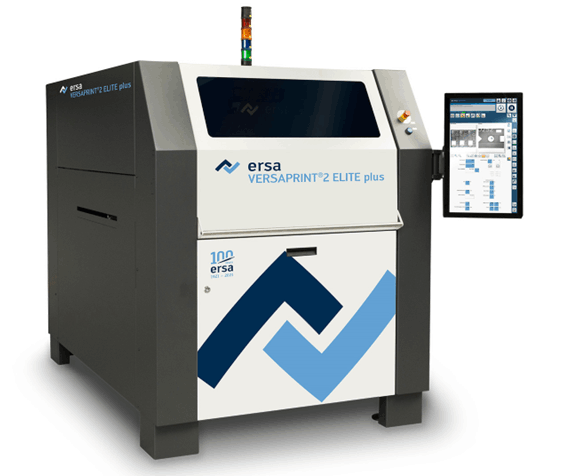

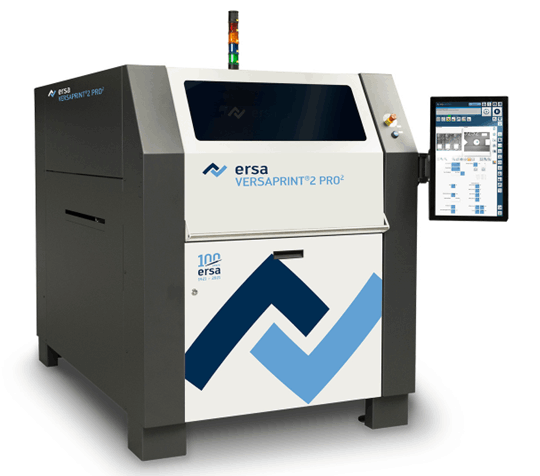

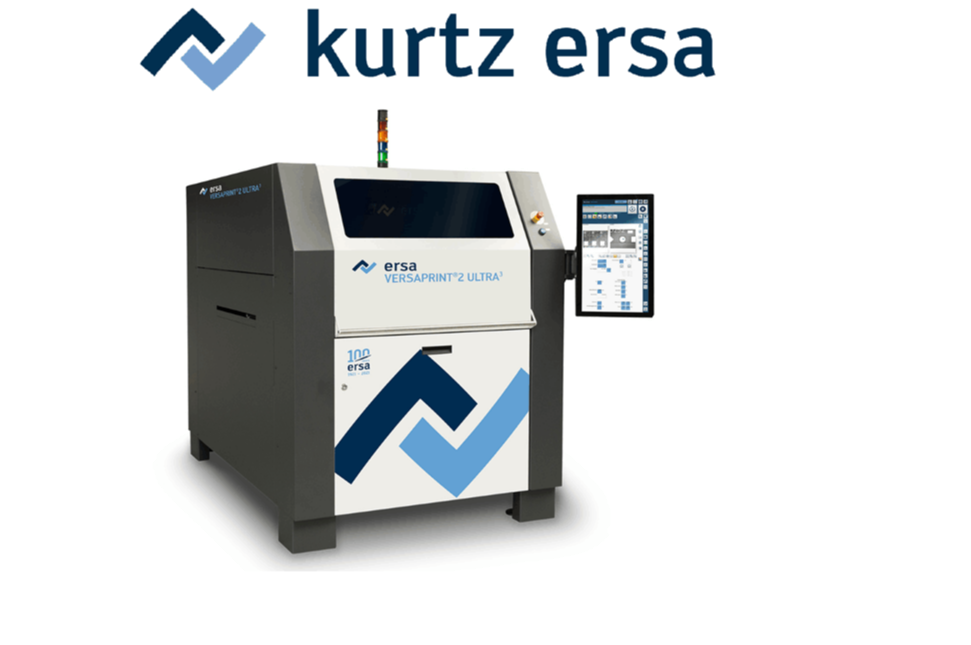

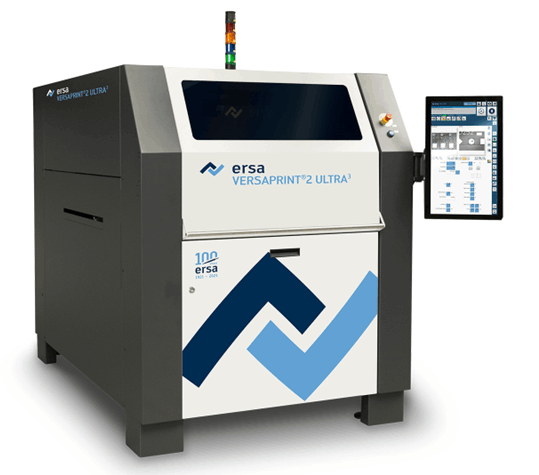

ERSA VERSAPRINT 2 SERIES
All VERSAPRINT 2 systems are based on the proven VERSAPRINT machine concept. Modern drive technology with encoders enhance control and verification of positioning processes on all process relevant axes.
The VERSAPRINT 2 employs modern camera technologies for fast set-up and integrated 100% inspection of the print area.
Line footprint is saved due to 100% SPI built-in to the machine. No extra cost for an additional SPI machine and feedback software cost. One less machine to maintain and program.
The new software design together with touch monitor and compact monitor arm provides for an efficient and space-saving operation of the printer.
Due to the open construction and the new cover design, the printer is easily accessible; which renders daily operation more efficient and maintenance is fast and easy.

There are four models of Versaprint 2 machine. The table below shows the options available.

Versaprint 2 Options Elite Elite plus  Pro2 Ultra3
PCB inspection: paste on pad, bridge detection, print offset 2D O2D O
2D-LIST O
3D-LIST O
2D-LIST S
3D-LIST
3D-LIST S
Stencil inspection:blockage and smearing2D O2D-O
2D-LIST
3D-LIST
2D-LIST S
3D-LIST
3D-LIST S
Adjustable stencil support  O    S    S    S
Automatic stencil Y-stop  O    O    S    S
Automatic paste add on stencil  O    O    O    O
Dispenser for glue or solder paste dots on PCB  X    O    O    O
Paste height control (paste amount on the stencil)  O    O    O    O
Retractable over top clamping  O    O    O    O
Temperature control  O    O    O    O
Data Matrix Code recognition  O    O    O    O
Set-up verification  O    O    O    O
Tooling systems: VarioGrid, Grid-Lok und Quik-tool  O    O    O    O
680 mm stencil cleaner  O    O    O    O
Closed-loop interface printer-SPI  O    O    O    O
S = Standard  O = Option  X = Not available

For more information please contact us
