Dispensing and Coating
With more than thirty five years of experience with conformal coating and dispensing systems, Coatflow (an Innomelt brand) is able to offer efficient, robust and technically advanced solutions in the handling of acrylics, urethanes, silicones and epoxy conformal coatings.

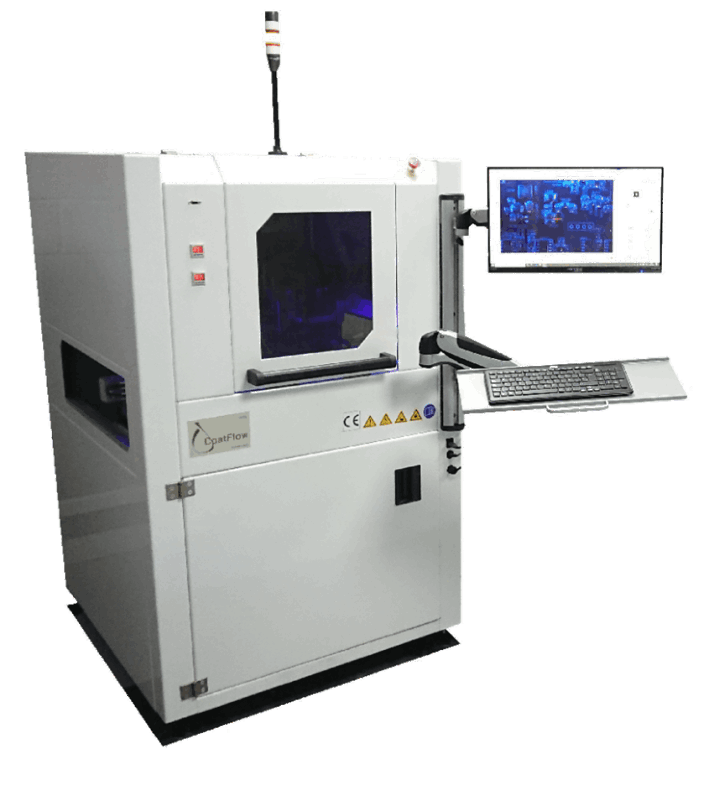

CF395IL Inline system
Inline System for Conformal Coating, Potting or Dispensing.
- Accurate 4 and 5 Axis robot (X, Y, Z, Rotation & Tilt).
- Easy programming system for quick program generation.
- Award winning GUI for easy operation.
- Fiducial camera as standard, can be used for teaching.
- Black light for inspection
- Servo motors for accuracy and repeatability.
- Stainless Steel and Aluminium construction for easy cleaning.
- Full range of valves and controls for all materials.
- Multiple conveyor options available.
- Multiple materials handling from 6oz to 30 litre apacity.
- 500x500x100mm working area.
-966x1120x2000mm outside dimensions (incl. light tower).

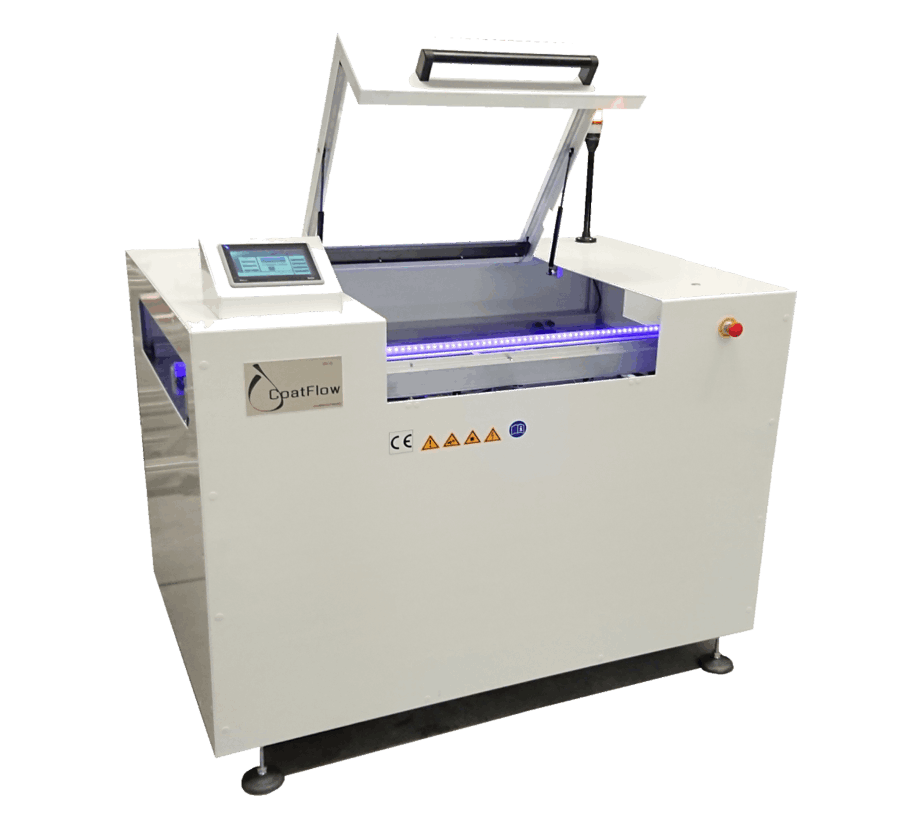

CFF15 Flash-off Station
Flash-off station normally used after the CF395IL system.
- Designed for inspection of boards after inline coating.
- Black and white light for inspection.
- Adjustable timer for different materials.
- Robust construction for stability.
- Full smema compatibility.
- Automatic width control available.

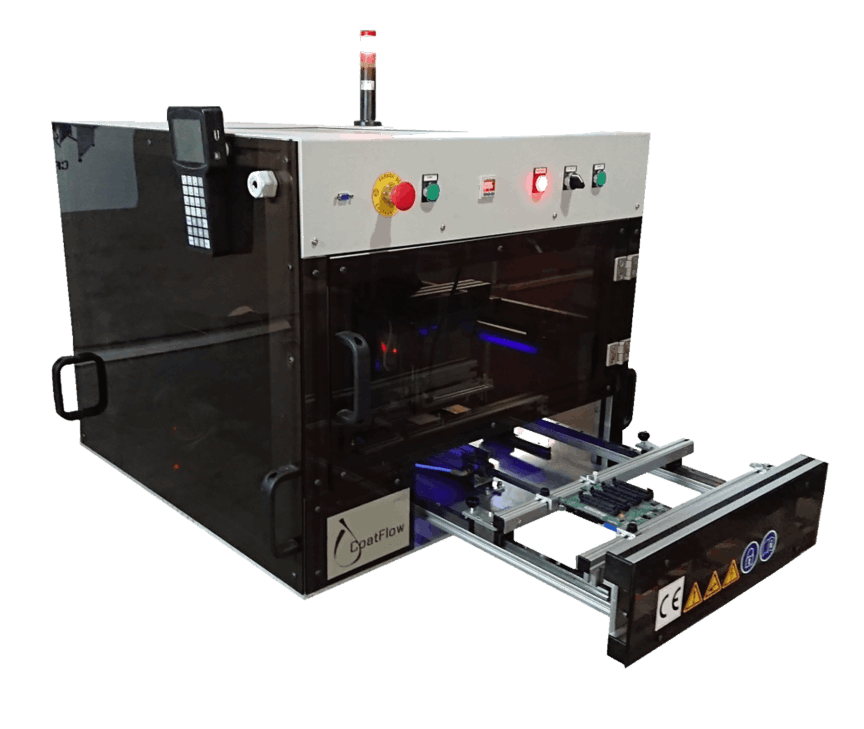

CF440LC Desktop System
Entry level benchtop machine but with the same technology.
- Reliable, accurate and easy maintenance solution.
- Accurate 4 Axis (X, Y, Z & Tilt).
- High speed and accuracy on conformal coating and dispensing process.
- Easy programming system with specialised software.
- Optional Teaching camera for programming purposes.
- Black light for inspection of conformal coating.
- Full range of valves and pressure tanks available.
- Automatic loading and unloading drawer.
- 450x450x100mm working area

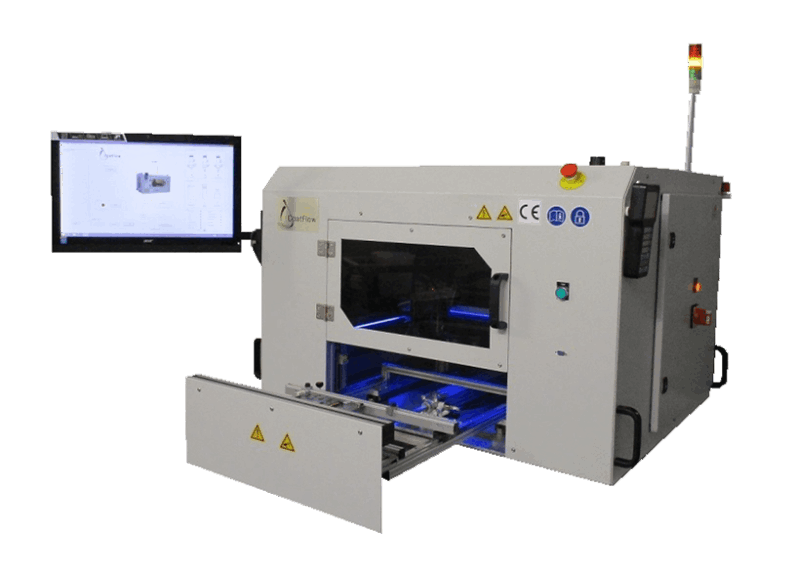

CF440 Benchtop System
Benchtop system offering all the capabilities of the inline system.
- Accurate 4 Axis robot (X, Y, Z & Tilt).
- Easy programming system for quick program generation.
- Laptop (Windows 10) to access all functions and information.
- Fiducial camera as standard, can be used for teaching.
- Black light for inspection
- Servo motors for accuracy and repeatability.
- Stainless Steel and Aluminium construction for easy cleaning.
- Full range of valves and controls for all materials.
- 500x500x100mm working area.

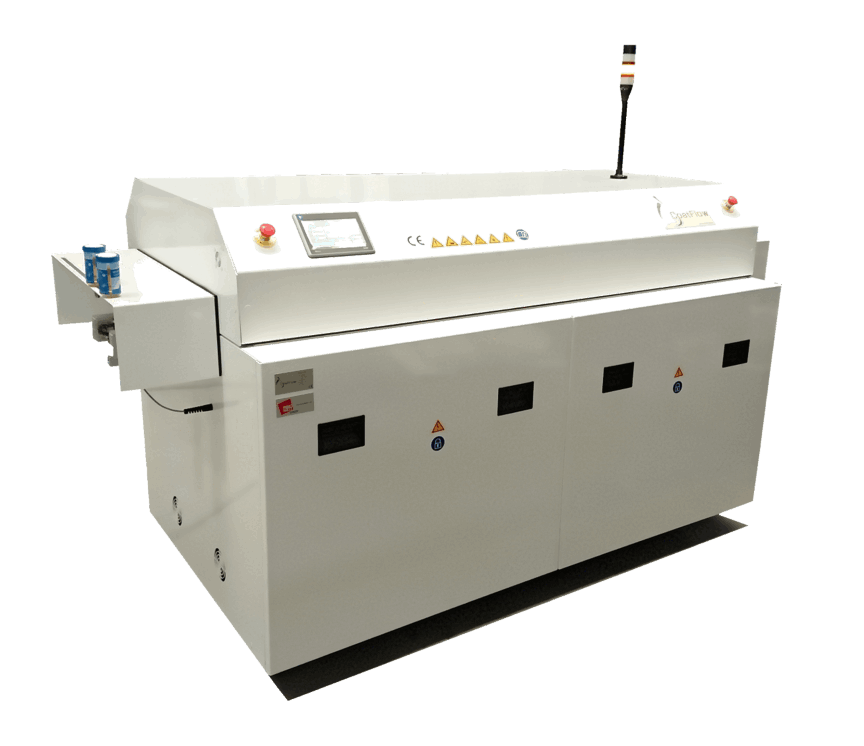

IR/UV Curing Ovens
We offer a full range of IR and UV curing ovens for all applications. Please contact us for more information.
- Desktop and in-line ovens available.
- IR ovens with up to 8 metres of curing length.
- Automatic conveyor width control available.
- Touch screen interface and fully smema compatible.
- UV inline ovens available.
